Weldmark Update

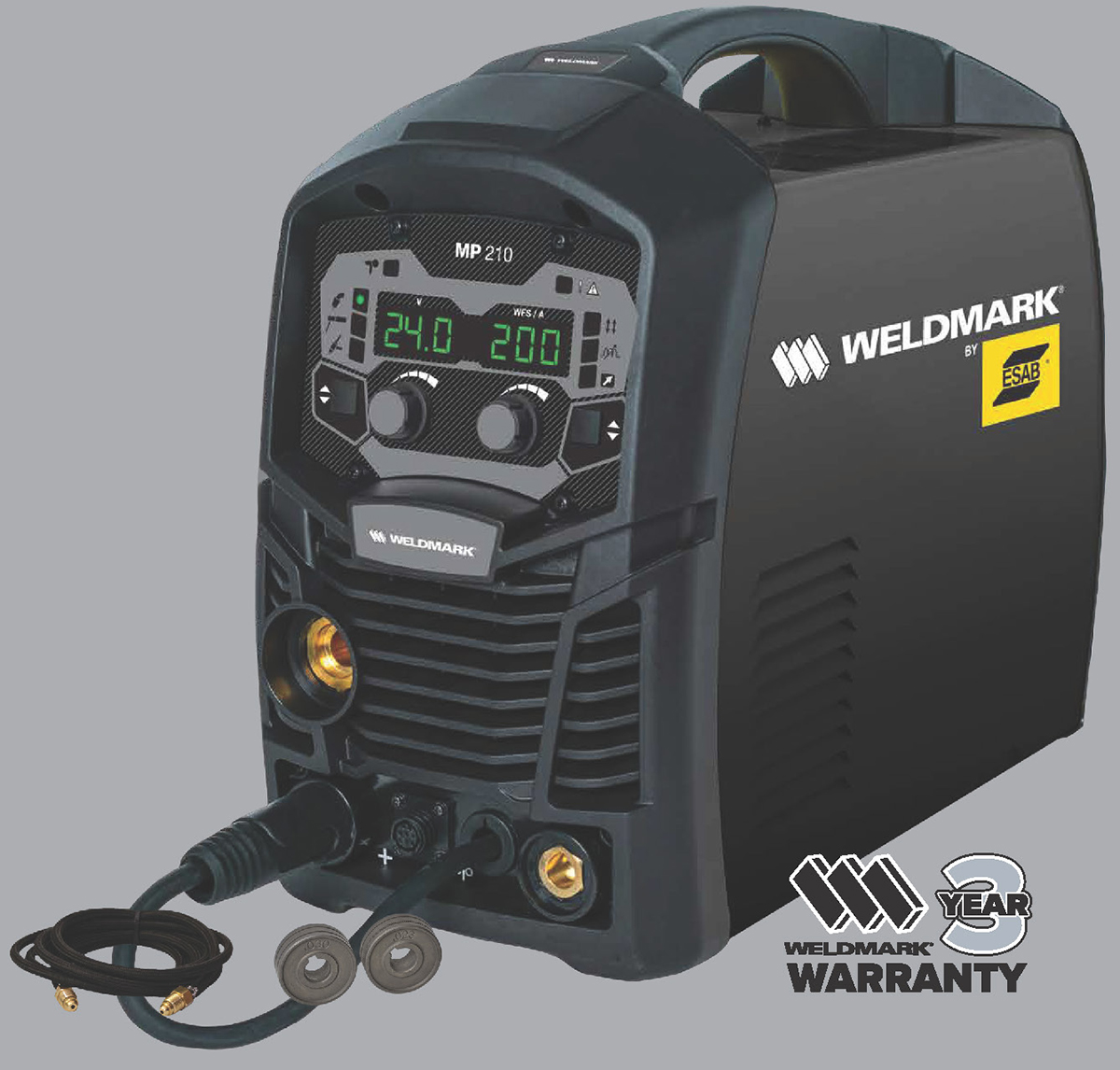

WELDMARK® MULTI PROCESS MACHINE
WEM MP210 WELDMARK® BY ESAB

PRODUCT SPECIFICATIONS
WEM MP210
DUAL VOLTAGE 120V/230V

  • • 200amps
  • • Mig, lift-arc tig, stick (SMAW) capable
  • • Capable of 023-030-035 mig wire
  • • Includes: 023-030, 030-035 drive rolls, 17V series tig torch, 180amp Tweco Fusion mig gun, electrode holder, ground clamp w/50mm Dinse connector, flowgauge w/hose, 2-lb spool 70S6
  • • Uses Weldmark by Tweco Velocity tips
  • • 230V-120V power adaptor available
  • • 3-year warranty
  • • Backed by ESAB
  • • ANSI and CSA Certified
  • • Input power 120V/230V
  • • MIG duty cycle 120V - 90amps 25%, 230V 200amps 15%
  • • TIG duty cycle 120V - 90amps 25%, 230V - 200amps 15%
  • • Stick duty cycle 120V - 70amps 25%, 230V - 170amps 15%

RELATED PRODUCTS

  • • TWE 2060-2142 4-PIN TO 8-PIN ADAPTOR
  • • ESB W4014000 230V-120V power adaptor
  • • ESB W4014450 Add-on foot control available
  • • TWE 1027-1397 Spool gun


CONSUMABLES NEEDED:

  • • WEM VTS23 .023 tips 10/pack
  • • WEM VTS30 .030 tips 10/pack
  • • WEM VTS35 .035 tips 10/pack
  • • TWE 1220-1201 VNS50 nozzle 2/pack

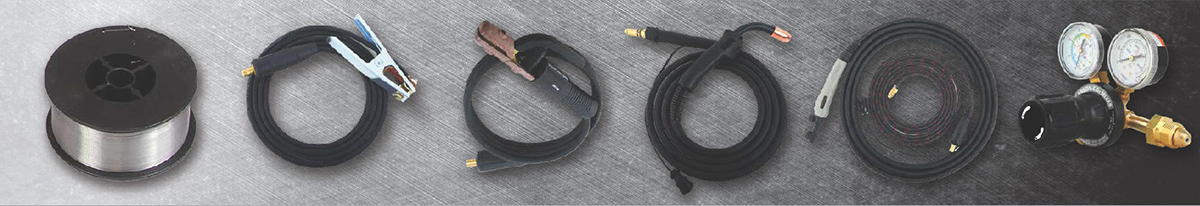

COMES COMPLETE WITH:

Gas Hose     Drive Rolls

Wire Spool Ground w/50mm Dinse Electrode Holder 10' MIG Gun Assembly TIG Torch Flowgauge/ Regulator
ALL sales qualify for the ESAB Distribution Center 3% rebate.
